5. Match the component type to the component description.

Provides resistance for circuit:

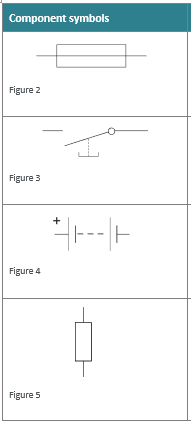

4. Match the component symbols to the component type.

Figure 2

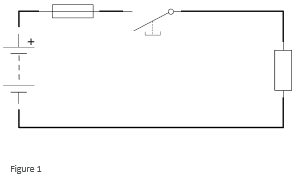

3. Match how different circuit conditions affect the operation of a single path d.c. circuit.

Higher current flow in fault condition

2. Milli is the prefix used when a unit is multiplied by:

1. Kilo is the prefix used when a unit is multiplied by:

5. Match the loads with the options provided to indicate how electricity is utilised in each case.

3. Read the statement/s carefully and indicate whether they are a renewable form of energy generation.

Coal fired boiler that converts water into steam which spins a turbine which in turn spins a generator to produce electricity.

Wind powered turbine which spins a generator via a gear box to produce electricity.

Water from a dam is gravity fed to a turbine which spins a generator to produce electricity.

Nuclear powered boiler converts water to steam which spins a turbine which in turn spins a generator to produce electricity.

Solar radiation falls on photovoltaic panels to produce electricity.
