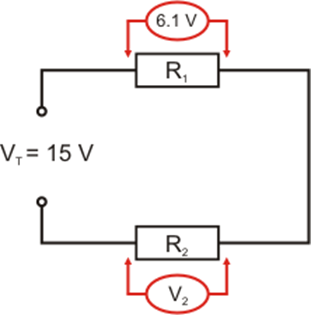

Determine the voltage drop across resistor R2 in the circuit below.





V2

View this question

Three resistors of 10 Ω, 20 Ω and 30 Ω are connected in series to 120V DC supply.

Calculate:

  • total resistance                               R
  • circuit current                                  IT
  • total power consumed                      PT
  • voltage drop across the 20 Ω resistor   V20
View this question

In a series connected circuit like the one below, if R2 goes open circuit:

0%
100%
0%
0%
View this question

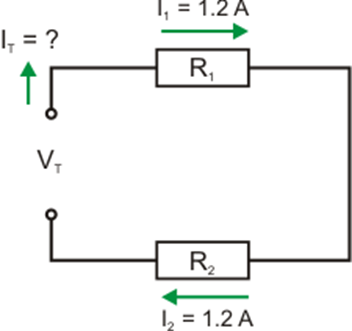

Determine the total current IT flowing into the circuit below.



IT



View this question

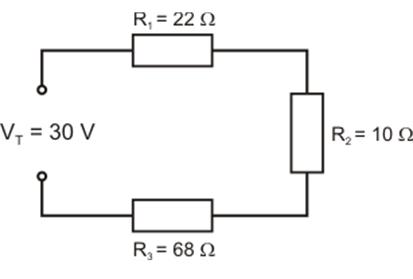

Which three (3) of the following are examples of a series circuit?

// <![CDATA[

$(document).ready(function() {

let $total = 0;

$("div.answer input[type=checkbox]").each(function(){

$(this).on('click', function(event) {

if (!$(this).is(":checked")) {

$total = $total - 1;

} else if ($total <= 2) {

$total = $total + 1 ;

} else {

event.preventDefault();

event.stopPropagation();

}

});

});

});

// ]]>

// <![CDATA[

$(document).ready(function() {

$("div.que.multichoice").each(function() {

if ($(this).find("#maximumselections").length) {

let maxselect = parseInt($(this).find("#maximumselections").text());

$(this).find("#numberselections").text(maxselect);

let $total = 1;

$(this).find("div.answer input[type=checkbox]").each(function() {

if($(this).is(":checked")){ $total++; }

$(this).on('click', function(event) {

if (!$(this).is(":checked")) {

$total = $total - 1;

$("div.validationerror").remove();

} else if ($total <= maxselect) {

$total = $total + 1;

$("div.validationerror").remove();

} else {

event.preventDefault();

event.stopPropagation();

if (!$("div.validationerror").length) {

$("div.answer").after("<div class='validationerror'>You can only select " + maxselect + " responses.</div>");

}

}

});

});

}

});

});

// ]]>

3

0%
100%
100%
0%
100%
0%
View this question

Use the information in the colour chart below to answer the following questions.

Colour

Value

Multiplier

Tolerance

Black

0

1

-

Brown

1

10

1%

Red

2

100

2%

Orange

3

1,000

-

Yellow

4

10,000

-

Green

5

100,000

0.5%

Blue

6

1,000,000

0.25%

Violet

7

-

0.1%

Grey

8

-

-

White

9

-

-

Gold

-

0.1

5%

Silver

-

0.01

10%



A resistor is colour coded with bands red, red, red, gold. Determine the values specified below

The resistor has a Nominal Value of kΩ with a tolerance of %. Its resistance range is from lowest value kΩ to highest value



View this question

Power loss in an electrical cable is primarily due to:

0%
100%
0%
0%
View this question

When a PTC thermistor is heated, the measured resistance of the device:

0%
0%
0%
0%
View this question

When a light dependent resistor is exposed to increasing levels of light, the measured resistance of the device:

0%
0%
0%
0%
View this question

When the voltage applied to a voltage dependent resistor exceeds the clamping voltage, the measured resistance of the device:

0%
0%
0%
0%
View this question
