16. In Vernier Caliper, the depth rod is used to measure to the ...........of the object.

The maximum suitable length to be measured by Vernier Caliper is ................

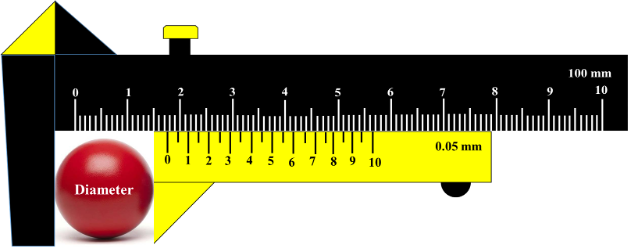

By using the calculated values of least count and zero error,

1. Measure and find the correct value of the dimension (diameter) of this sphere in mm.

2. Calculate the volume of the sphere.

Calculate the volume of the sphere.

In Vernier Caliper, the Vernier scale (sliding scale) is divided in cm scale.

By using Vernier Caliper, we can measure the accuracy of ............... in mm scale.

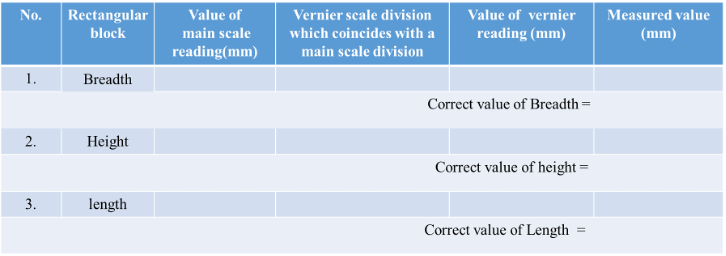

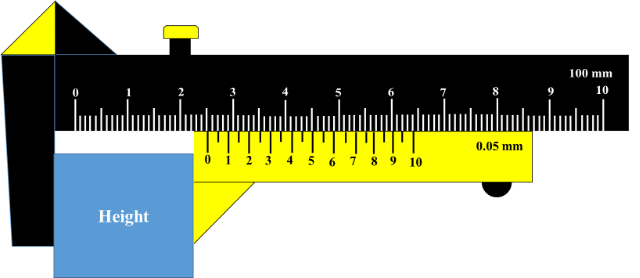

By using the calculated values of least count and zero error, Measure and find the correct value of the dimension (Height) of this object in mm.

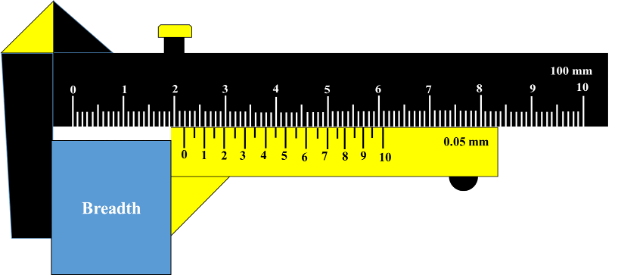

By using the calculated values of least count and zero error, Measure and find the correct value of the dimension (breadth) of this object in mm.

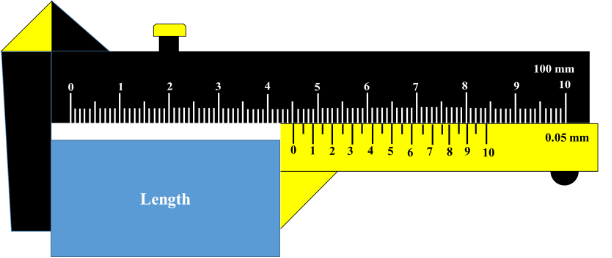

By using the calculated values of least count and zero error, Measure and find correct value of the dimension (length) of this object in mm.

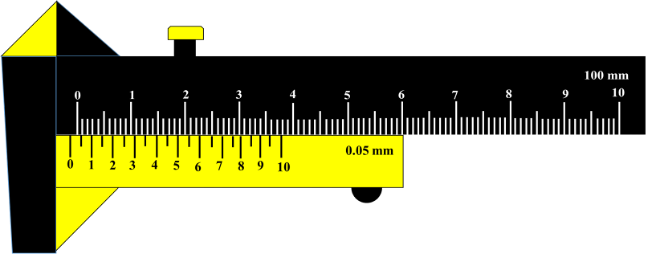

If the least count is 0.05 mm, Find the zero error for this slide caliper.

By using the correct values of dimensions (length, breadth, height) of the object, Calculate the volume in mm3 of the object.

V = …………………….?
