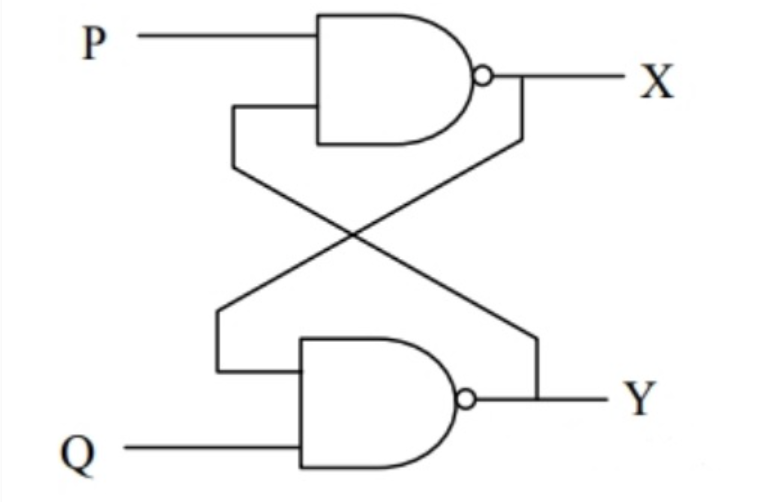

In the latch circuit shown, the NAND gates have non-zero, but unequal propagation delays. The present input condition is: P = Q = “0‟. If the input condition is changed simultaneously to P = Q = “1”, the outputs X and Y are

Either X = ‘1’, Y = ‘0’ or X =’0’, Y = ‘1’

0%

X = ‘1’, Y =’1’

0%

Either X = ‘1’, Y = ‘1’ or X =’0’, Y = ‘0’

0%

X = ‘0’, Y =’0’

0%

View this question

The Boolean function f implemented in the figure using two input multiplexers is

1

0%

none of these

0%

0%

100%

View this question

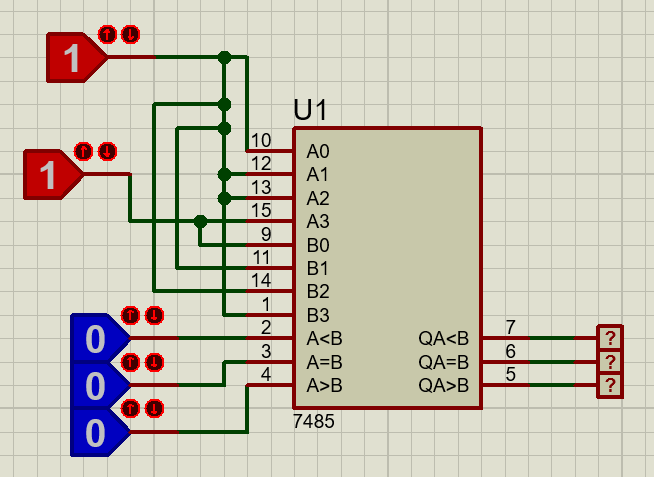

Output of 4 bit comparator is ?

100

0%

000

0%

101

100%

View this question
