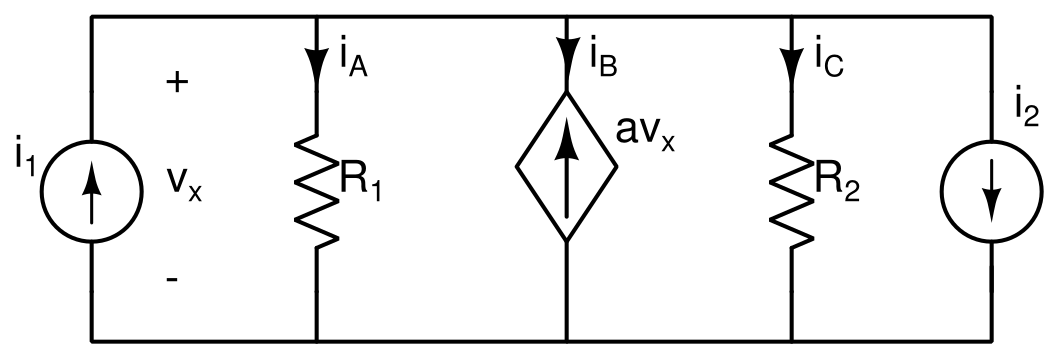

What is the voltage Vx ? i1=5.2 A, i2=2.2 A, R1=18.5 Ω, R2=8.7 Ω, a=0.7 S. Units must be included in the answer.

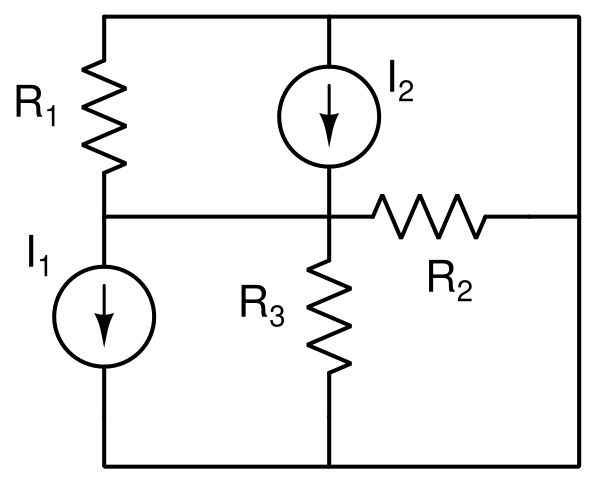

I1 = 5.2 mA, I2 = 3 mA, R1 = 1.4 kΩ, R2 = 2.5 kΩ, R3 = 4.9 kΩ. What is the power absorbed by the current source I1 in mW?

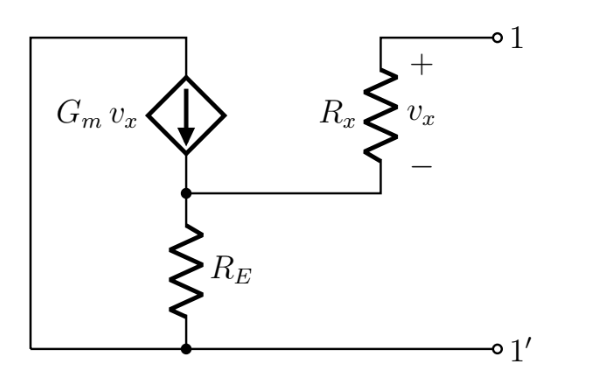

What is the equivalent resistance as seen at the terminal in kΩ ?
Gm=0.5 mS, Rx= 5 kΩ, RE=10 kΩ, .
The current through a 1F capacitor is i(t) = u(t) - 2δ(t-1) A. What is the voltage across the capacitor at time t = 2.8 s? Marks will be cut if units is not included.
