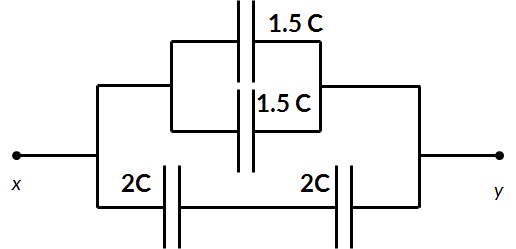

Find the equivalent capacitance of the networks shown in the figure below:

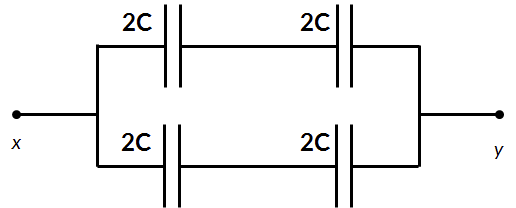

Find the equivalent capacitance of the networks shown in figure below:

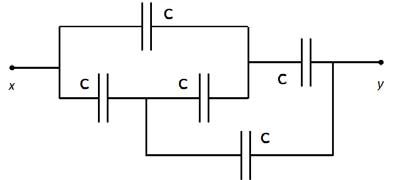

Find the equivalent capacitance of the networks shown in figure below:

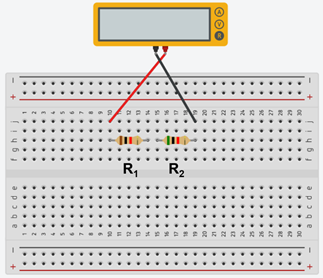

The reading in the multimeter is _____________.

Given R₁=8.7 kΩ and R₂=3.9 kΩ

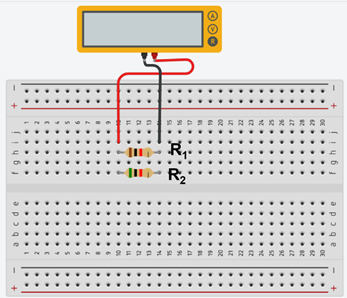

The reading in the multimeter for the circuit shown in figure below will

be

when R1=3.7 kΩ and R2=5.5 kΩ

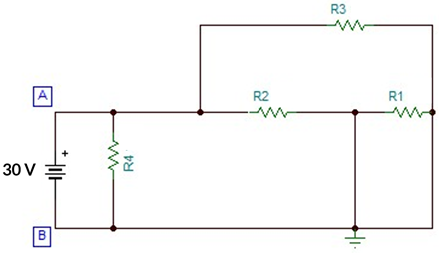

Find the equivalent resistance (in Ohm) of the circuit between

A and B. The values of resistances are R1=38 Ω, R2=24 Ω, R3=29 Ω, R4=58 Ω.

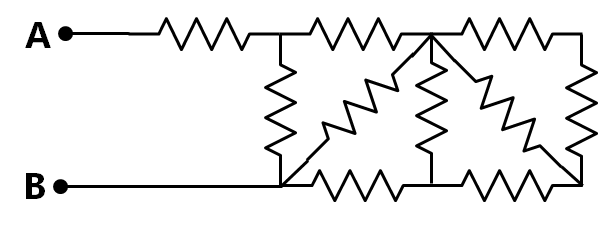

For the circuit shown below, find the equivalent resistance between nodes A and B. Assume 1 kΩ resistance.

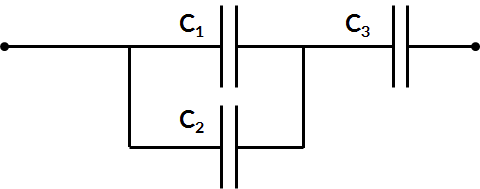

Find the equivalent capacitance of the networks shown below:

Assume

the capacitors to be 3, 75 and 340 μF, respectively.
